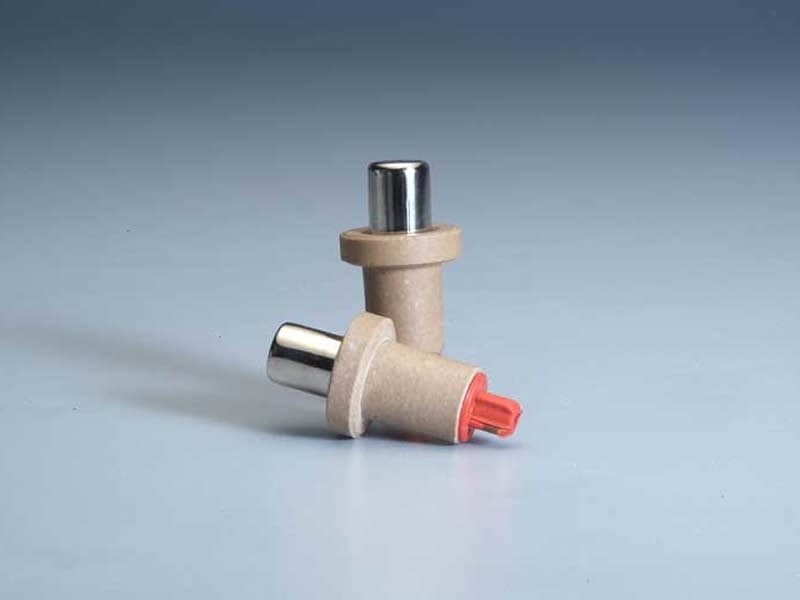

Smart Temperature Sensor Cartridge
V-SMART · SKU v-smart-CARTUCHO-SENSOR-TEMPERATURA
Sensor cartridge for measuring molten metal temperature, built with a ceramic bush, refractory cement, an aluminum or steel cap, a quartz tube and thermocouple wire. Available with a type S or type R thermocouple and a Mark VII lance connector.
Technical specifications
| Materials | Ceramic bush, refractory cement, Al/steel cap, quartz tube, thermocouple wire |
| Application | Molten metal temperature measurement |
| Thermocouple | Type S (Pt/Pt-Rh10%) or type R (Pt/Pt-Rh13%) |
| Lance connector | Mark VII |
| Measuring range | Up to 1700 °C |
| Bush outer diameter | 18 mm |
Specifications subject to confirmation in the formal quote.
