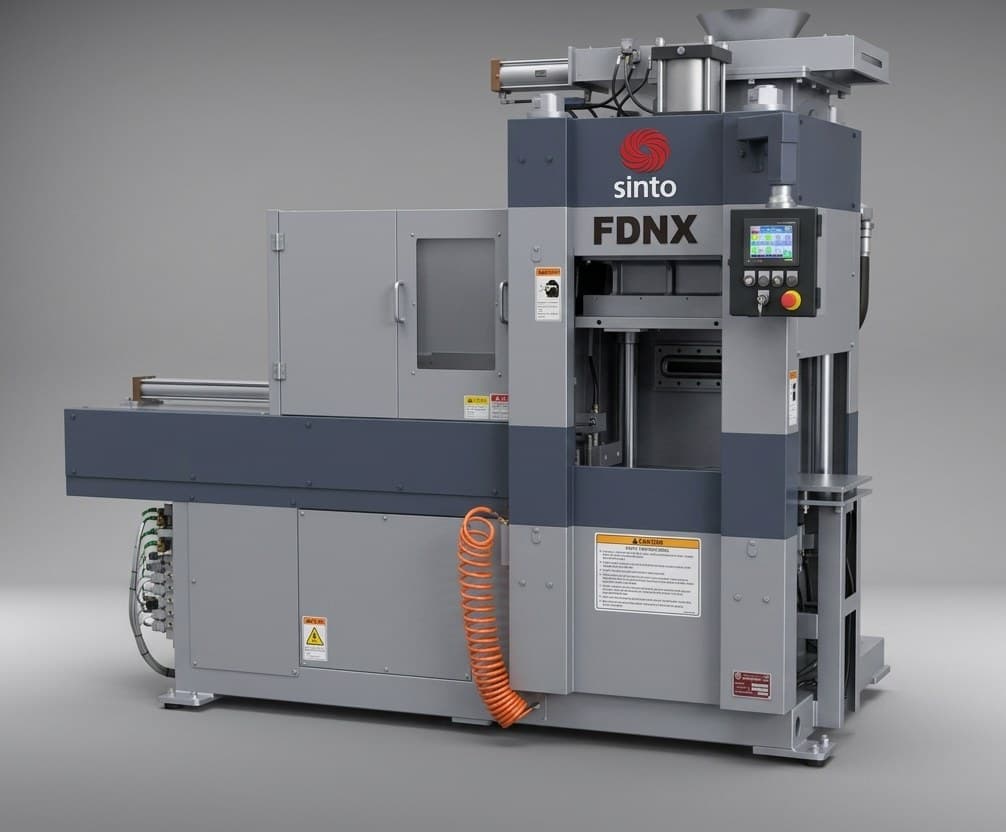

FDNX Flaskless Molding Machine
Sinto America / Tinker Omega · SKU sinto-america-FLASKLESS-FDNX
A compact flaskless molding machine designed as the first step from manual to automatic molding, with no pit required and an air-over-oil system instead of a pump-driven hydraulic circuit. Aeration filling helps with patterns that have deep pockets and little draft.
Technical specifications
| Models | FDNX-0 (metric only) and FDNX-1 |
| Mold size | 450 x 350 mm (FDNX-0), 406 x 508 mm (16 x 20 in) (FDNX-1) |
| Drive system | Air and air over oil |
| Shipping weight | 3175 kg (FDNX-0), 4945 kg (FDNX-1) |
| Power requirement | 120 VAC single phase, 24 VDC controls (FDNX-1) |
| Cope and drag height | 150 mm (FDNX-0), 178 mm (7 in) (FDNX-1) |
| Dimensions (L x W x H) | FDNX-0: 2744 x 1778 x 2344 mm, FDNX-1: 2604 x 1740 x 2693 mm |
| Operating air pressure | 0.56 MPa (81 PSI) |
| Rate with 9 s core set | 80 molds/hour (FDNX-0), 74 molds/hour (FDNX-1) |
| Maximum squeeze pressure | 0.7 MPa (100 PSI) |
| Average maximum molding rate | 100 molds/hour (FDNX-0), 90 molds/hour (FDNX-1), excluding core set |
Specifications subject to confirmation in the formal quote.
