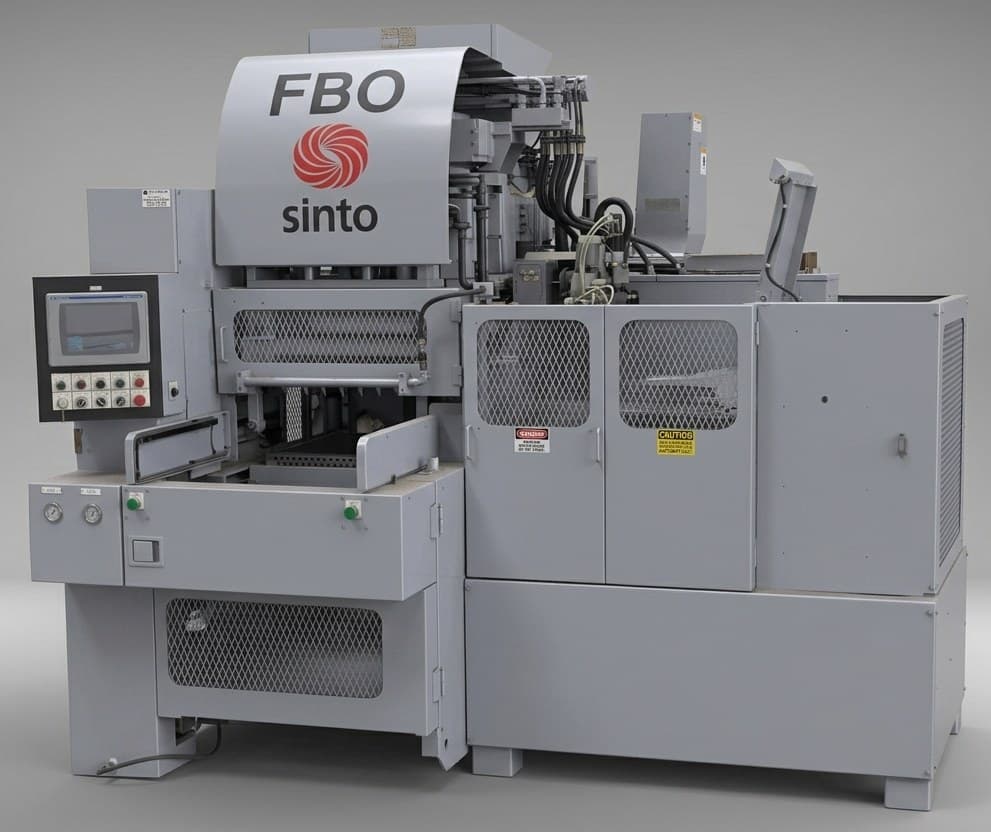

FBO Flaskless Molding Machine
Sinto America / Tinker Omega · SKU sinto-america-FLASKLESS-FBO
A single-station, horizontal-parting flaskless molding machine for green sand foundries. It covers a wide range of mold sizes and a variable mold height, adapting to different pattern profiles and making efficient use of sand.
Technical specifications
| Models | FBO-II, FBO-II S, FBO-IIIA, FBO-III B, FBO-III S, FBO-IV, FBO-V |
| Options | Aeration, safety light curtain, pattern heater and vibrator, central lube, remote connectivity |
| Features | No pits, no bottom boards, programmable hydraulic squeeze |
| Mold size | From 356 x 483 mm (14 x 19 in) to 812.8 x 821.8 mm (32 x 32 in) |
| Cycle time | 24 to 45 seconds per mold depending on model |
| Configuration | Single station, horizontal parting, left-hand or right-hand versions |
| Molding system | Edge blow + squeeze (aeration filling available on some models) |
| Average maximum mold rate | 80 to 150 molds/hour depending on model, without core setting |
| Mold height (cope and drag) | From 130-200 mm (5-8 in) up to 280-355 mm (11-14 in) depending on model |
Specifications subject to confirmation in the formal quote.
