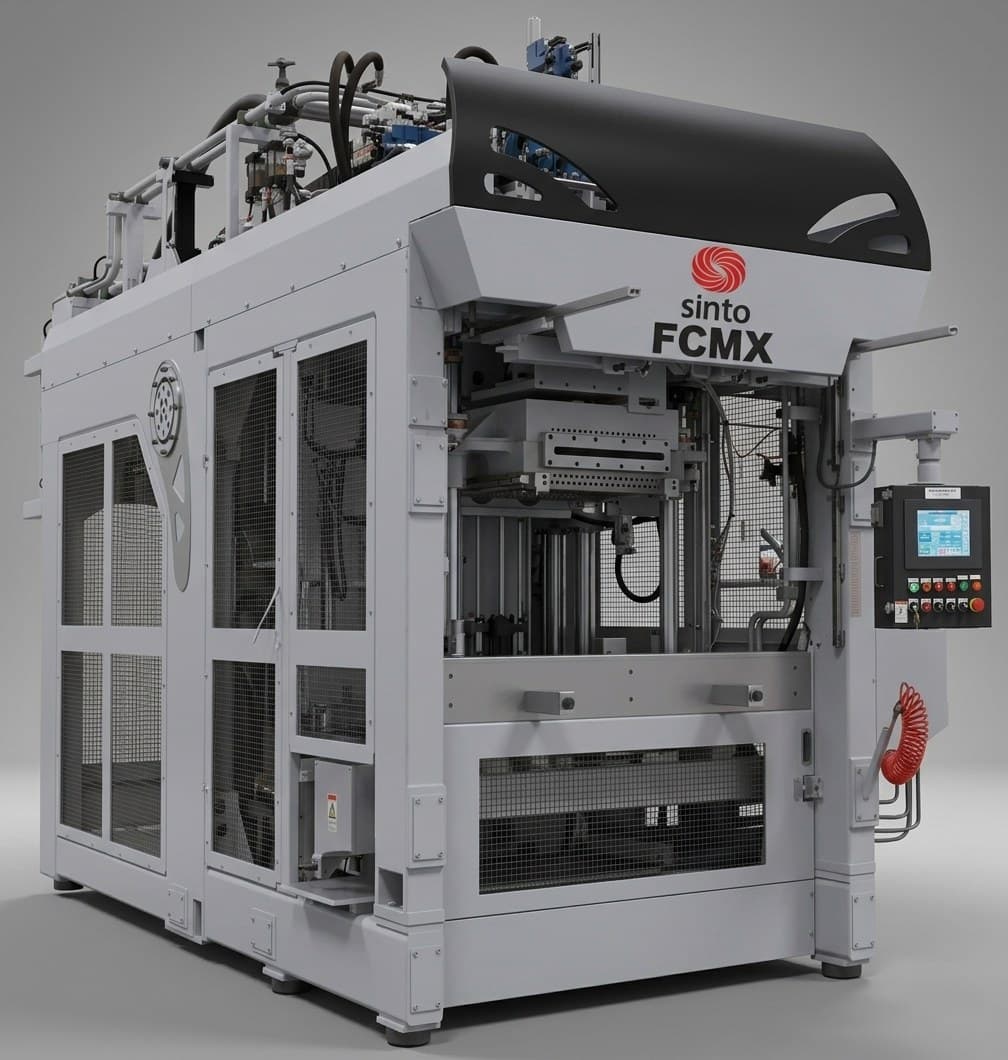

FCMX Flaskless Molding Machine
Sinto America / Tinker Omega · SKU sinto-america-FLASKLESS-FCMX
A high-speed multi-station flaskless molding machine, available in two- or four-station designs, giving the operator 9 seconds to set cores during the cycle. It uses aeration sand filling and centered guide rods to keep cope and drag aligned without pins and bushings.
Technical specifications
| Models | FCMX-I, FCMX-II, FCMX-III |
| Options | Automatic pattern changer, pattern plate preheater, safety light curtain, molding analysis monitor, core setter, receiver tank |
| Stations | Two or four |
| Mold size | 16 x 20 in (406 x 508 mm), 20 x 24 in (508 x 609.6 mm), 20 x 26 and 20 x 28 in (508 x 660.4 and 508 x 711.2 mm) |
| Molding system | Aeration sand filling + squeeze |
| Mold height control | Height feedback control to reduce sand consumption |
| Cope and drag height | 130-200 mm (5-8 in) or 180-250 mm (7-10 in) depending on model |
| Average maximum molding rate | 200 molds/hour (18 s/mold) or 171 molds/hour (21 s/mold), includes 9 s of core setting |
Specifications subject to confirmation in the formal quote.
