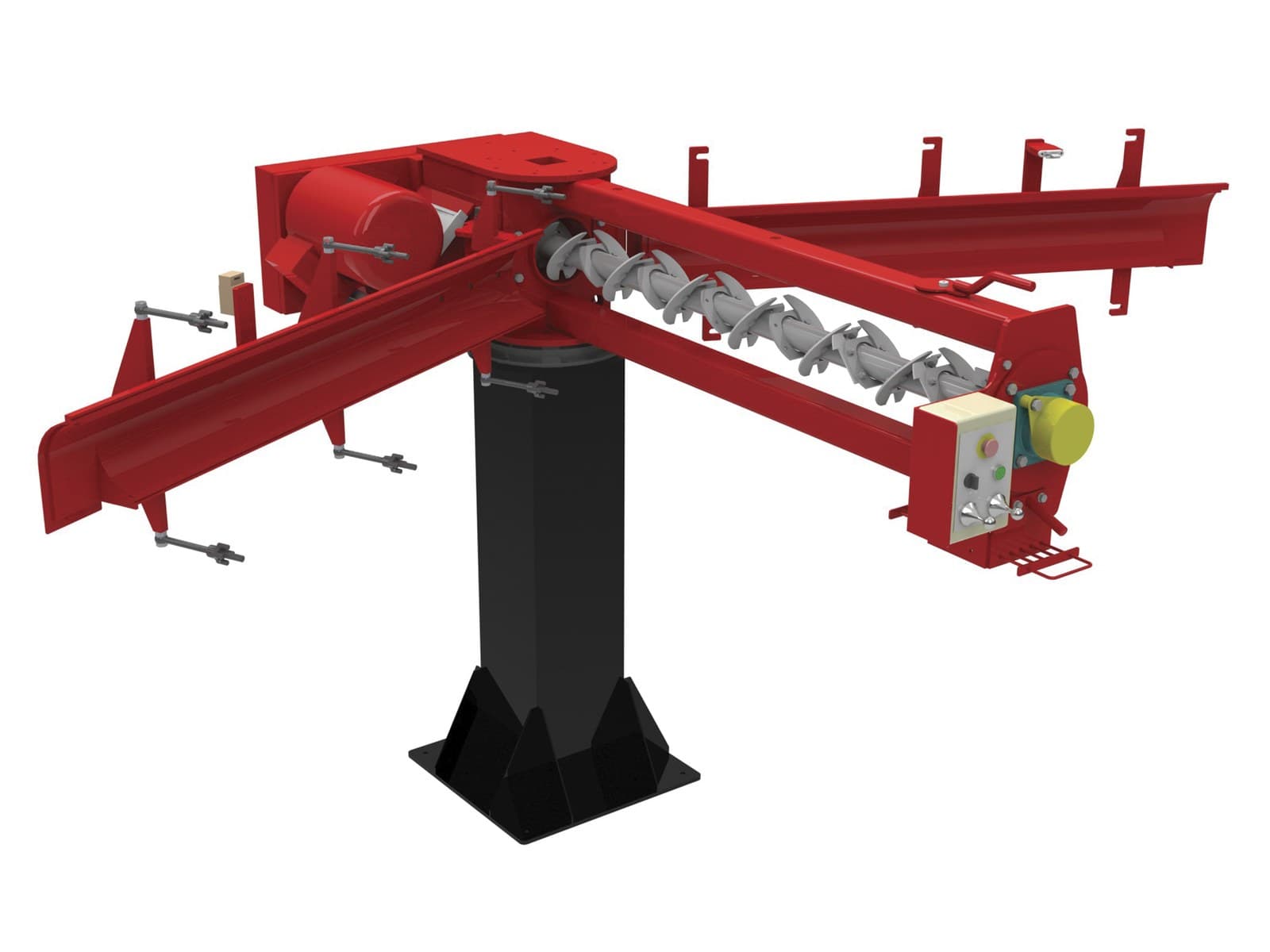

Omega 300 Series
Sinto America / Tinker Omega · SKU sinto-america-OMEGA-300-SERIES
A series of sand mixers in swivel and articulated belt or screw arm versions, covering outputs from 1 to 60 tons per hour. Features include an easy-opening door, half-moon blades tipped with tungsten carbide and air assist that helps atomize the chemicals.
Technical specifications
| Blades | Half-moon, tungsten carbide tipped, bolt-on, variable hold-back |
| Versions | Swivel, articulated belt arm and articulated screw arm |
| Air assist | Individually adjustable pressures, 3-way calibration valve |
| Swivel models | 303P, 305P, 310P, 320P, 335P, 345P, 360P |
| Reach (swivel) | From 680 mm (26.8 in) to 2,605 mm (102.6 in) |
| Belt arm models | 310AB, 320AB, 335AB, 345AB, 360AB |
| Screw arm models | 310A, 320A, 335A, 345A, 460A |
| Reach (articulated) | From 4,691 mm (184.7 in) to 8,605 mm (338.8 in), with 3 meter screw arm |
| Output range (swivel) | From 35-110 lb/min (1-3 TPH) to 1,450-2,200 lb/min (40-60 TPH) |
| Output range (articulated) | From 180-440 lb/min (5-12 TPH) to 1,450-2,200 lb/min (40-60 TPH) |
Specifications subject to confirmation in the formal quote.
