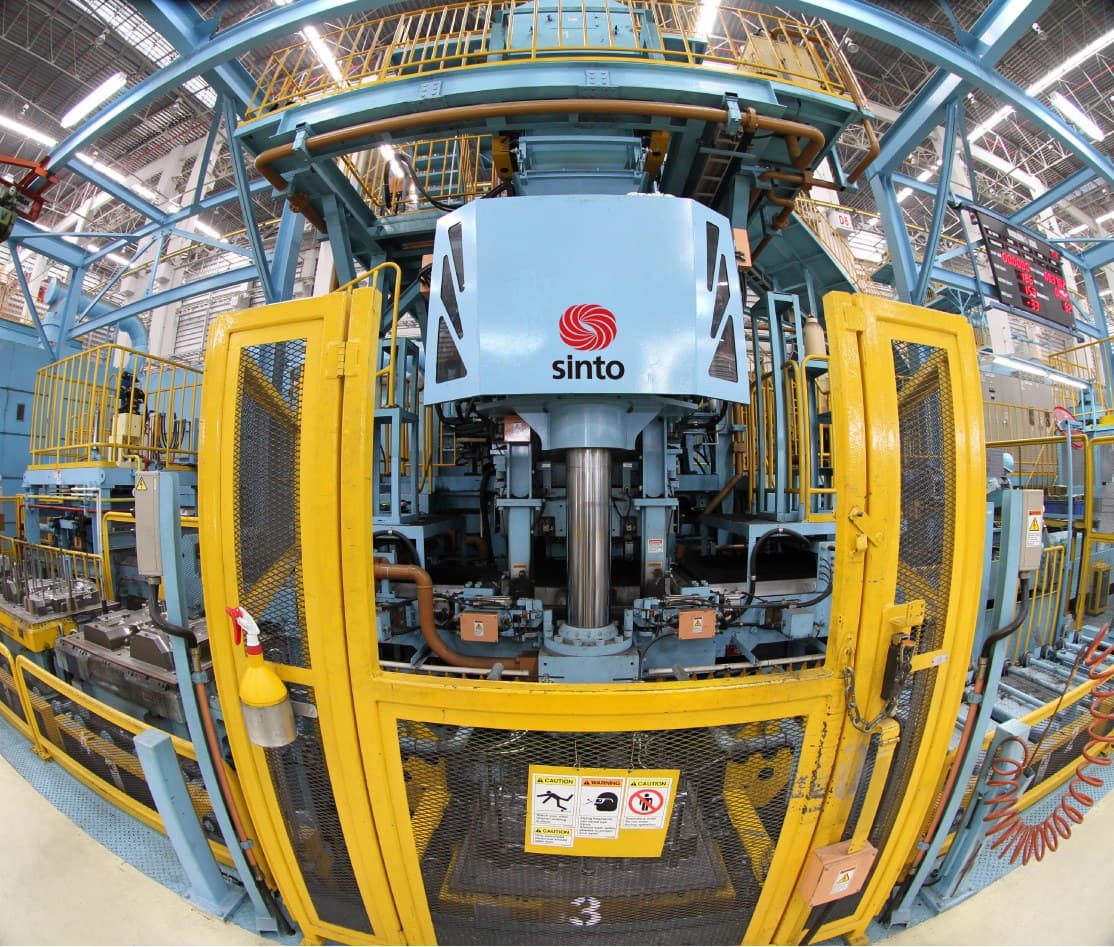

ACE Series
Sinto America / Tinker Omega · SKU sinto-america-TIGHTFLASK-ACE
A compact tight flask molding machine that uses aeration sand filling and zone-adjustable squeeze pressure. It produces uniformly dense molds and dimensionally precise castings, with minimal spill sand and lower sand preparation needs. Its simple design eases maintenance and needs little installation space.
Technical specifications
| Models | ACE-3 to ACE-7 |
| Options | Wear-resistant leveling seal, auto pattern changer, wear-resistant nozzle, pattern heater, hydraulic pre-set pad, additional or clamp-type pattern bolster |
| Features | Compact design, low energy consumption and easy maintenance |
| Mold height | 150 to 350 mm (depending on model) |
| Molding system | Aeration sand filling + combination squeeze (plain and leveling squeeze) |
| Twin-station rate | Up to 240 molds/hour |
| Cycle time per mold | 24 to 45 seconds depending on model |
| Mold size (width x length) | 650 x 700 mm to 1200 x 1500 mm |
| Average maximum molding rate | 80 to 150 molds/hour depending on model |
Specifications subject to confirmation in the formal quote.
